Share a directory between Ubuntu on VirtualBox and Windows

October 13, 2017

Verified step-by-step instructions for sharing a directory between Ubuntu running on VirtualBox and Windows.



Prerequisites

  • If you haven't installed VirtualBox and/or Ubuntu 16.04 on VirtualBox, click here.

  • If you haven't installed VirtualBox guest additions, click here.

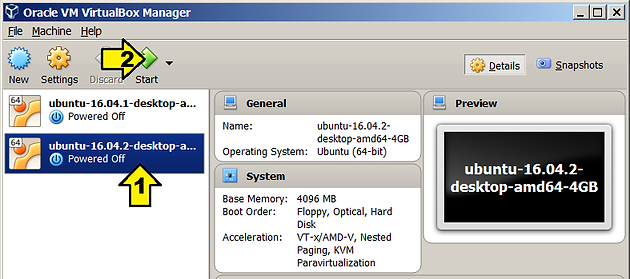

Step 1 - Start VM after launching VirtualBox if its not running: click 1, click 2



Step 2 - Login: click 1, enter password, hit Enter



Step 3 - Open a terminal: right click 1, click 2



Step 4 - Create c:\shared in Windows: right click Start (1), click 2

 ...click C: (3), right click 4, hover 5, click 6

 ...name the folder shared. Result:



Step 5 - Open the Shared Folders Settings: click 1, hover 2, click 3



... click Transient Folders (1)and the Add Folder icon (2).



 ... browse to c:\shared and click the Ok button (1). Leave the radio buttons unchecked.



...click OK (1).







Step 6 - Back in the VM, create a directory and mount the shared directory.



On the guest, in the terminal type:

$ mkdir ~/guest_shared

$ sudo mount -t vboxsf shared ~/guest_shared

$ echo "Hello, World!" > ~/guest_shared/hello.txt



Back on the Windows host:

Look in c:\shared. You should see hello.txt. Open it up. You should see: Hello, World!



If you saw: Hello, World!, congratulations!





Other Info



Specific configuration

  • VirtualBox Version 5.1.14 r112924 (Qt5.6.2)

    • In VirtualBox Manager: Help > About VirtualBox...

  • Ubuntu 16.04.2 Guest in VirtualBox

  • Windows Host (what VirtualBox is running on)

    • Windows 7 Professional Service Pack 1

  • System

    • Component Details (Subscore) (Base score)

      • Processor Intel(R) Core(TM) i7-6600U CPU @ 2.60GHz (7.3) (5.1) Determined by lowest subscore

      • Memory (RAM) 12.0 GB (7.6)

      • Graphics Intel(R) HD Graphics 520 (5.1)

      • Gaming graphics 1888 MB Total available graphics memory (6.9)

      • Primary hard disk 366GB Free (462GB Total) (7.9)
        Windows 7 Professional

    • System

      • Manufacturer LENOVO

      • Model 20FNCTO1WW

      • Total amount of system memory 12.0 GB RAM

      • System type 64-bit operating system

      • Number of processor cores 2

    • Storage

      • Total size of hard disk(s) 477 GB

      • Disk partition (C:) 366 GB Free (462 GB Total)

      • Disk partition (Q:) 4 GB Free (14 GB Total)

    • Graphics

      • Display adapter type Intel(R) HD Graphics 520 (gfxbench)

      • Total available graphics memory 1824 MB

        • Dedicated graphics memory 192 MB

        • Dedicated system memory 0 MB

        • Shared system memory 1632 MB

      • Display adapter driver version 20.19.15.4454

      • Primary monitor resolution 1920x1080

      • Secondary monitor resolution 1920x1200

      • DirectX version DirectX 10

    • Network

      • Network Adapter Intel(R) Ethernet Connection I219-LM

      • Network Adapter Intel(R) Dual Band Wireless-AC 8260

      • Network Adapter Microsoft Virtual WiFi Miniport Adapter

      • Network Adapter Microsoft Virtual WiFi Miniport Adapter

      • Network Adapter Bluetooth Device (Personal Area Network)

      • Network Adapter VirtualBox Host-Only Ethernet Adapter

    • System Info from

      • Right click Start >  Click Open Windows Explorer

      • Right click Computer > Click Properties

      • Click Windows Experience Index

      • Click View and print detailed performance and system information
