TUL PYNQ-Z2 Unboxing, Zynq-7000 Details and Links to Documentation

December 21, 2018



This post presents a TUL PYNQ-Z2 unboxing and links to documentation. It also lists which Zynq-7000 is used (XC7Z020-1CLG400C) the features of the particular Zynq-7000 and some package details.



Unboxing



The box



...the bottom of the box



...opened



A close up of the board...



...and the bottom of the board.



...and the SD Card:







Power



 ...and a close up on the power supply:

Some of the details on adapter:

AC ADAPTER

Model: ATS036T-W120V LPS

Input: 100-240V 50-60Hz 1A MAX.

Output: 12V 3A

EFFICIENCY LEVEL V1





Zynq-7000 Feature, Package & Mechanicals Summary



The PYNQ-Z2 has a XC7Z020-1CLG400C



Device/Package I/O at [link]

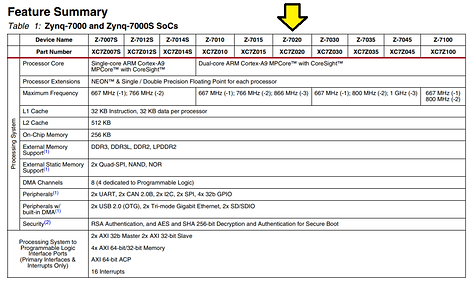

Feature Summary





Package Specification

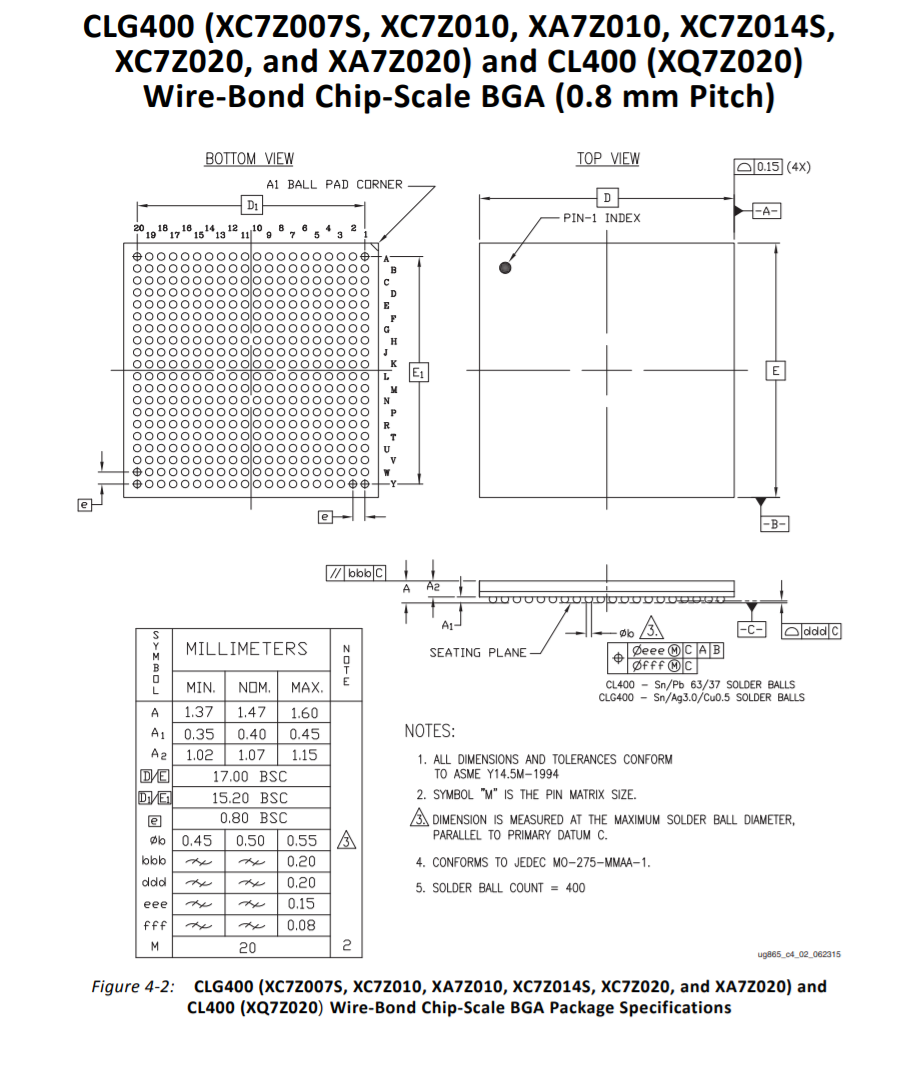

Mechanicals





Documentation (All docs listed are available at [link])

  • PYNQ-Z2 User Manual (PDF)

    • pynqz2_user_manual_v1_0.pdf at [link]

    • copy @ [link]

  • PYNQ-Z2 Boot Image

    • ​pynq_z2_v2.3.zip at [link]

    • copy @ [link]

  • PYNQ-Z2 Board File (for Pmod IP support please refere here)

  • Master XDC

    • ​pynq-z2_v1.0.xdc.zip at [link]

    • copy @ [link]

  • Protective Acrylic Case (PDF)

    • PYNQ_Z2-AcrylicCaseDrawing.PDF at [link]

    • copy @ [link]

  • Zynq Datasheet (PDF)

    • ds187-XC7Z010-XC7Z020-Data-Sheet.pdf at [link]

    • copy @ [link]

  • Zynq Manual (PDF)

    • ug585-Zynq-7000-TRM.pdf at [link]

    • copy @ [link]

  • Schematics (PDF)

    • TUL_PYNQ%20Schematic_R12.pdf at [link]

    • copy @ [link]





References

  • TUL PYNQ-Z2 Product Announcement, Product Specification, Downloads, Ordering, Technical Support and Distribution Partners at [link]

  • Zynq-7000 SoC Data Sheet: Overview - ds190-Zynq-7000-Overview.pdf - [link]

  • Zynq-7000 SoC Packaging and Pinout Product Specification - ug865-Zynq-7000-Pkg-Pinout.pdf - [link]
